If your Dyson vacuum cleaner battery has stopped working for a long time and is out of warranty, this popular hack may come in handy. With the addition of a simple adapter, your vacuum cleaner can run on a common 20V power tool battery, giving your machine new life for years to come.

If you like frugal tips, check out 10 Clever and Frugal Garden Hacks to Solve Common Garden Problems.

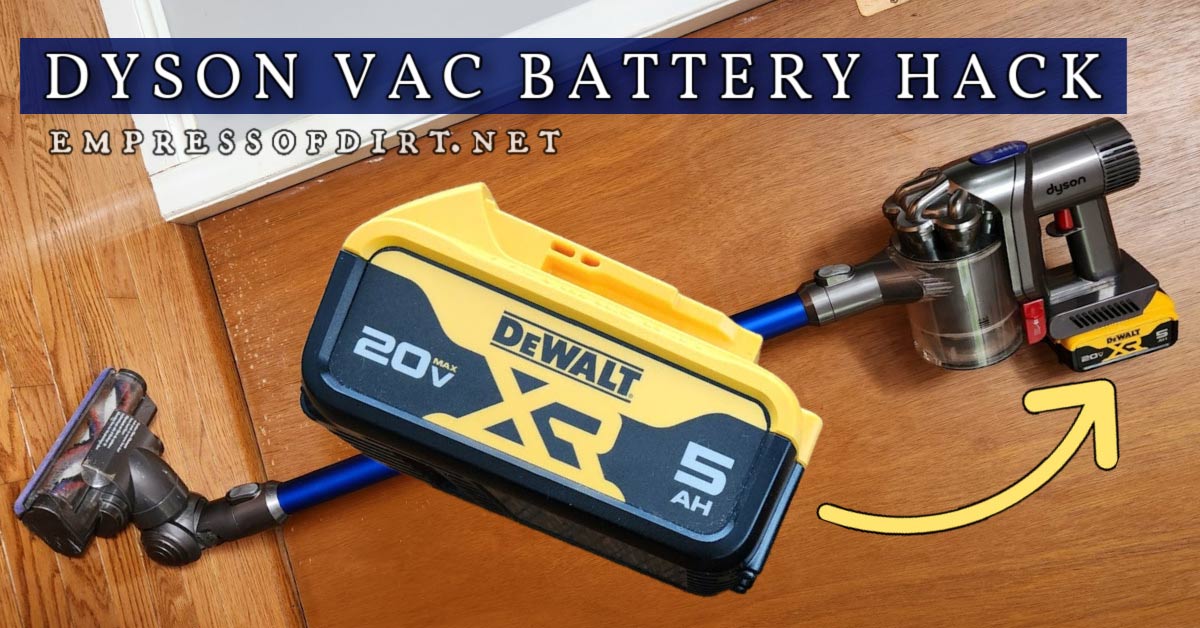

Collage showing a Dewalt 20v battery and a Dyson vacuum cleaner.

Dyson battery replacement ideas

Collage showing a Dewalt 20v battery and a Dyson vacuum cleaner.

When you invest in a quality vacuum cleaner, you expect it to last for years. My Dyson DC45 worked fine for a long time until the battery died. It won’t fully charge and the vacuum keeps stopping and starting.

I wanted to get a replacement battery, but the battery was old, expensive, and there was no guarantee that it would last long enough to justify the cost.

Before I part with my machine, I decided to try out a popular battery hack.

This is how it works. Replace the battery with the adapter that matches your Dyson model. This adapter has a built-in 20V lithium-ion battery that is used in power tools from famous brands such as Dewalt and Milwaukee.

The entire process takes about 5 minutes and the only tool required is a Phillips screwdriver.

I’m glad I made the switch because not only is my vacuum working like new again, but I can clean my entire house without having to stop and charge it.

Plus, with a 20V battery that works with all power tools, you can have a spare battery on hand.

One downside is that this hack makes the vacuum cleaner top-heavy. The 20V battery is heavier than the original Dyson one, adding about a pound to the weight of the unit. This can be a deal breaker if hand weight can be an issue.

We’ll explain everything you need to know.

As always, hacking is done entirely at your own risk and will definitely void your warranty.

content

How to install the battery adapter

Obtain the appropriate adapter. Open the Vac head. Remove the original battery pack. Insert the adapter. Insert the 20V battery.

How to install the battery adapter

1Get the right adapter

Dyson vacuum cleaner label indicating battery type B.Dyson vacuum cleaner label indicating battery type B.
Check the label on your vacuum cleaner to see if it is Type A or Type B.

The label on your Dyson vacuum will tell you the type of battery (A or B).

My Dyson DC45 is type B.

Order an adapter of the appropriate type (A or B) that will work with your 20 V battery.

I use a Dewalt 20V 5Ah rechargeable battery. I was also able to use a Dewalt 20V 2Ah battery.

2open vacuum head

Press the blue button to release the vacuum head and access the washable filter.Press the blue button to release the vacuum head and access the washable filter.
Press the blue button to release the vacuum head and access the washable filter.

On my Dyson DC45, when I press the blue filter button, the vacuum head opens into two parts.

Dyson vacuum cleaner heads can be disassembled to remove the washable filter.Dyson vacuum cleaner heads can be disassembled to remove the washable filter.
Disassemble the vacuum head and remove the second battery screw in the same way as when cleaning the filter.

3Remove the original battery pack

Now you can remove the screws that secure the battery pack.

On the Dyson DC45, there is one screw behind the handle (pictured below, left).

The other screw is located just below the area where the washable filter is located (pictured below, right).

There are two places to remove the screws: on the back of the handle and on the inside under the washable filter.There are two places to remove the screws: on the back of the handle and on the inside under the washable filter.
There are two places to remove the screws: on the back of the handle and on the inside under the washable filter.

Check the screw head. In my case, it seems to be a Pozidrive screw, but I was able to remove it with a Phillips screwdriver.

The battery pack can be removed by removing the screw.

Once the screws are removed, the battery pack will slide out of the Dyson vacuum cleaner.Once the screws are removed, the battery pack will slide out of the Dyson vacuum cleaner.
After removing the screw, the battery pack can be pulled out.

4Insert the battery adapter

Insert the battery adapter and secure it in place using the same screws you removed.

Replace the vacuum head.

I installed a new battery adapter on my Dyson vacuum cleaner.I installed a new battery adapter on my Dyson vacuum cleaner.
I installed a new battery adapter on my Dyson vacuum cleaner.

5Insert the 20V battery

Insert a fully charged 20V battery and you’re ready to go.

Dyson vacuum cleaner with battery adapter attached.Dyson vacuum cleaner with battery adapter attached.
Dyson vacuum cleaner with battery adapter attached.
Dyson vacuum cleaner and DeWalt battery adapter.Dyson vacuum cleaner and DeWalt battery adapter.
Using a 20V battery makes the vacuum cleaner heavier, but it works well

result

The first time I vacuumed with the new battery, I couldn’t believe how well the machine worked.

Even though I had just cleaned the floors and stairs with another vacuum, the Dyson still found all kinds of pet hair and dirt.

My Dyson vacuum cleaner is full of trash.My Dyson vacuum cleaner is full of trash.
This vacuum cleaner picks up more dirt than other vacuum cleaners.

And best of all, I was able to vacuum the entire house without losing charge.

care

Please remove the 20V battery when the vacuum cleaner is not in use. Charge the battery if necessary. If you continue with standard maintenance such as cleaning the filter and brushes, we hope that your vacuum will last for many years to come.
